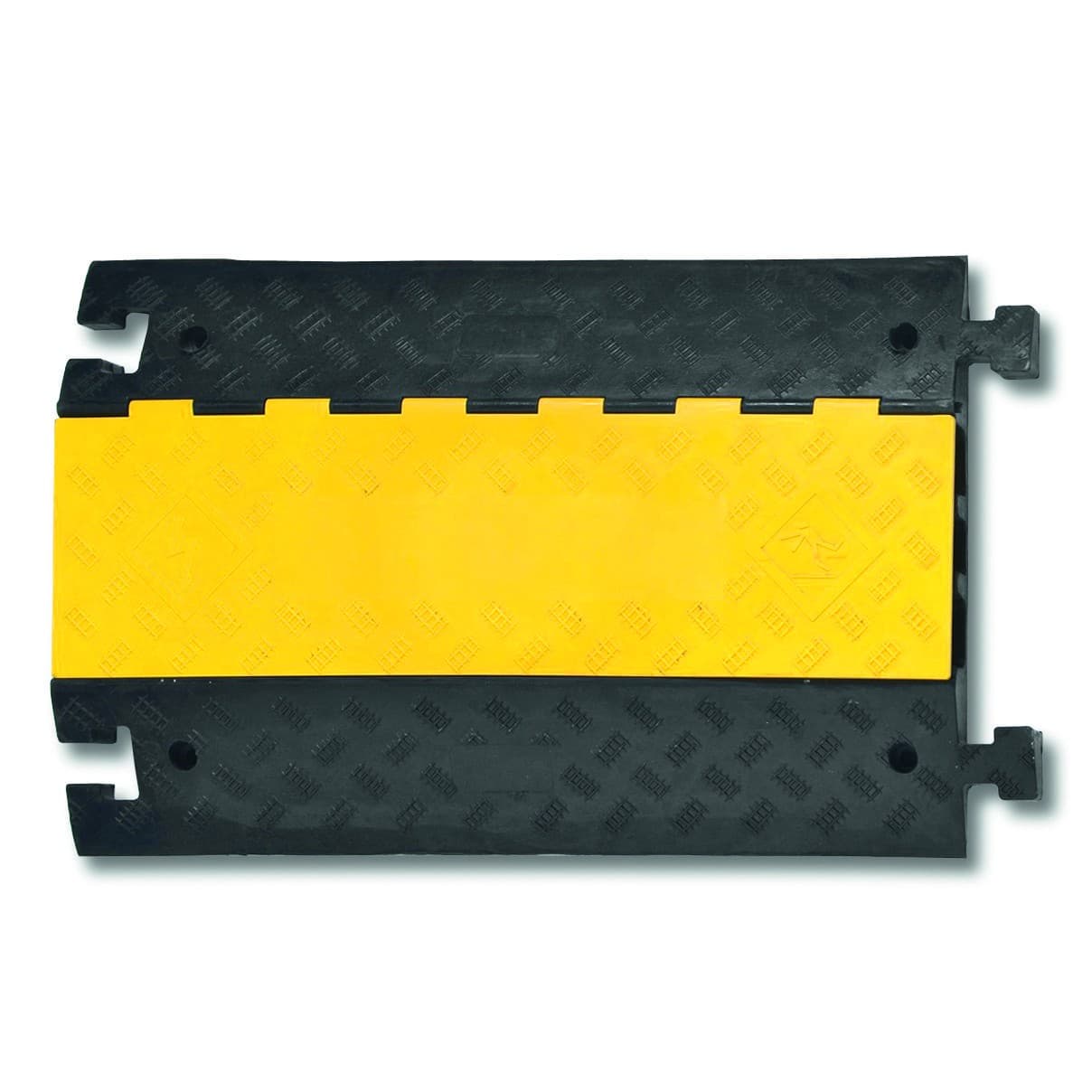

3 Channel Heavy Duty Cable & Hose Ramp

Product Code 05-0240-M

Heavy Duty Cable & Hose Protection

Modular interlocking design suitable for heavy goods vehicles

  • Immediate cable / hose protection for street works, outdoor events and other industrial environments
  • Rugged, heavy duty design with anti-slip surface can withstand use by HGVs (up to 10,000kg axle weight)

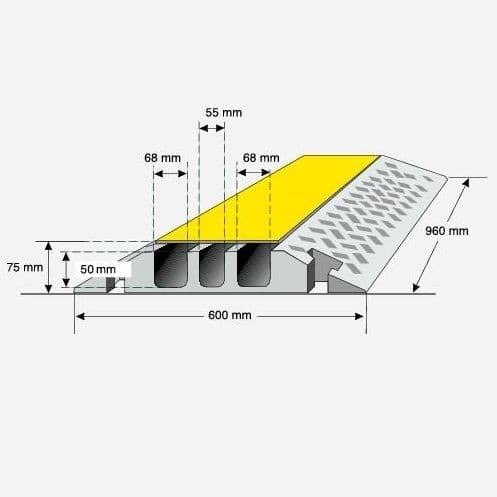

  • 75mm high x 600mm x 960mm | weight 26.5kg
  • Hinged lid enables cables and hoses to be inserted once ramps are in position
  • Main sections have 4No. fixing holes (approx. 18mm) allowing permanent fixing if required
  • A super-strong cable protection solution with 3 top-loading channels to accommodate a wide range of cables and hoses!

**You may also be interested in our wheelchair ramp for use with this cable & hose protector (see below)**

More information

Main linked sections usually require no ground fixings, but they do come with 4 bolt holes if you want to create a permanent (or semi-permanent) installation

 Section
 Dimensions (H) x (W) x (L)    Weight            Floor Bolts
 Main Section 75mm x 600mm x 960mm26.5kg  Pack of 4 (optional)
